    THE ULTIMATE COMPACT SHARPENER

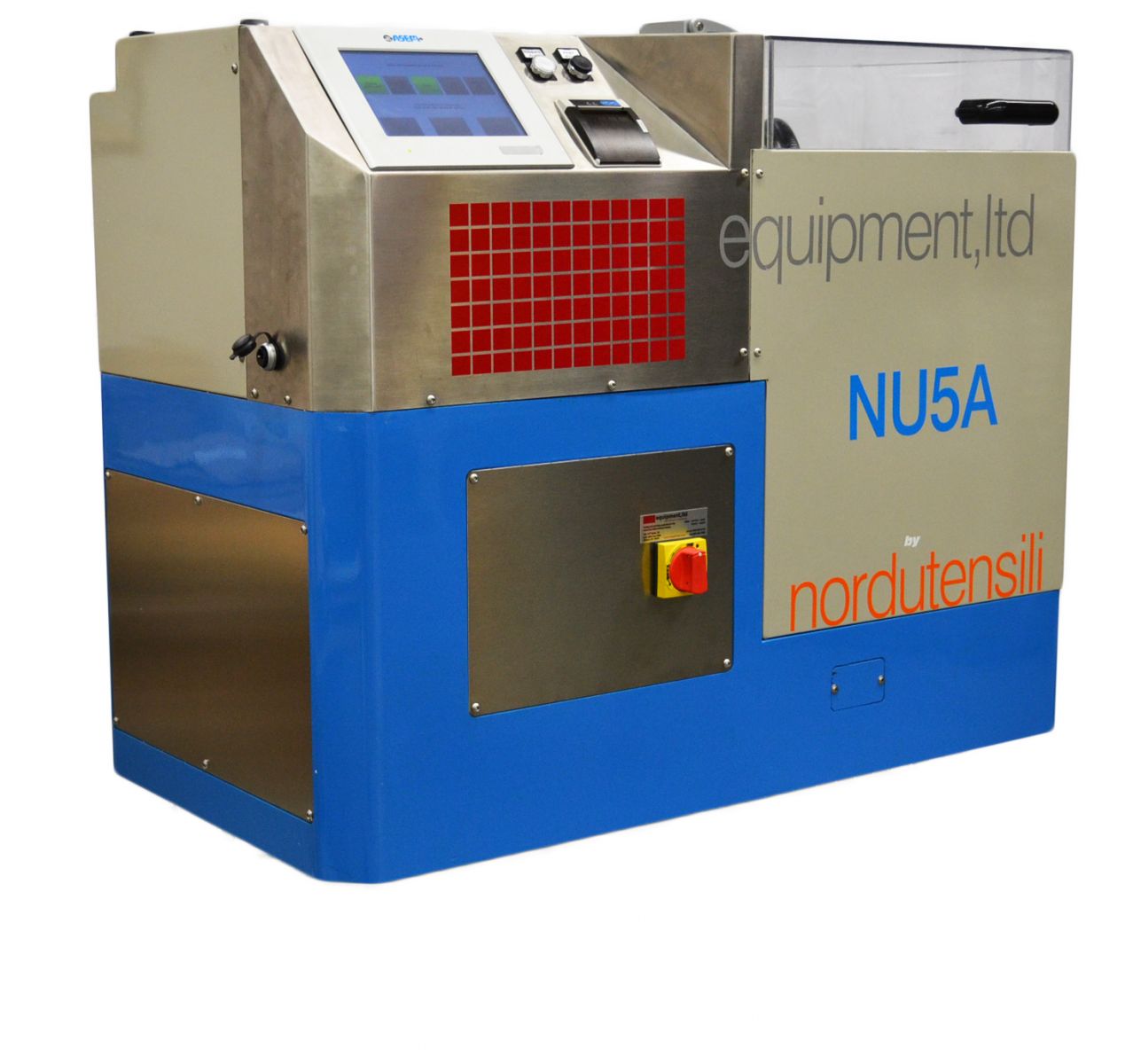

NU5A Compact Scan





equipment,ltd. is pleased to introduce the new

Nordutensili NU5A Compact Scan machine,

the first totally automatic compact spiral router bit sharpener in the world.

Features:

  • The NU5A Compact Scan will grind all types of solid carbide spiral bits
  • The first machine designed specifically to resharpen for spiral router bits
  • Compact overall size allows easy and problem-free installation

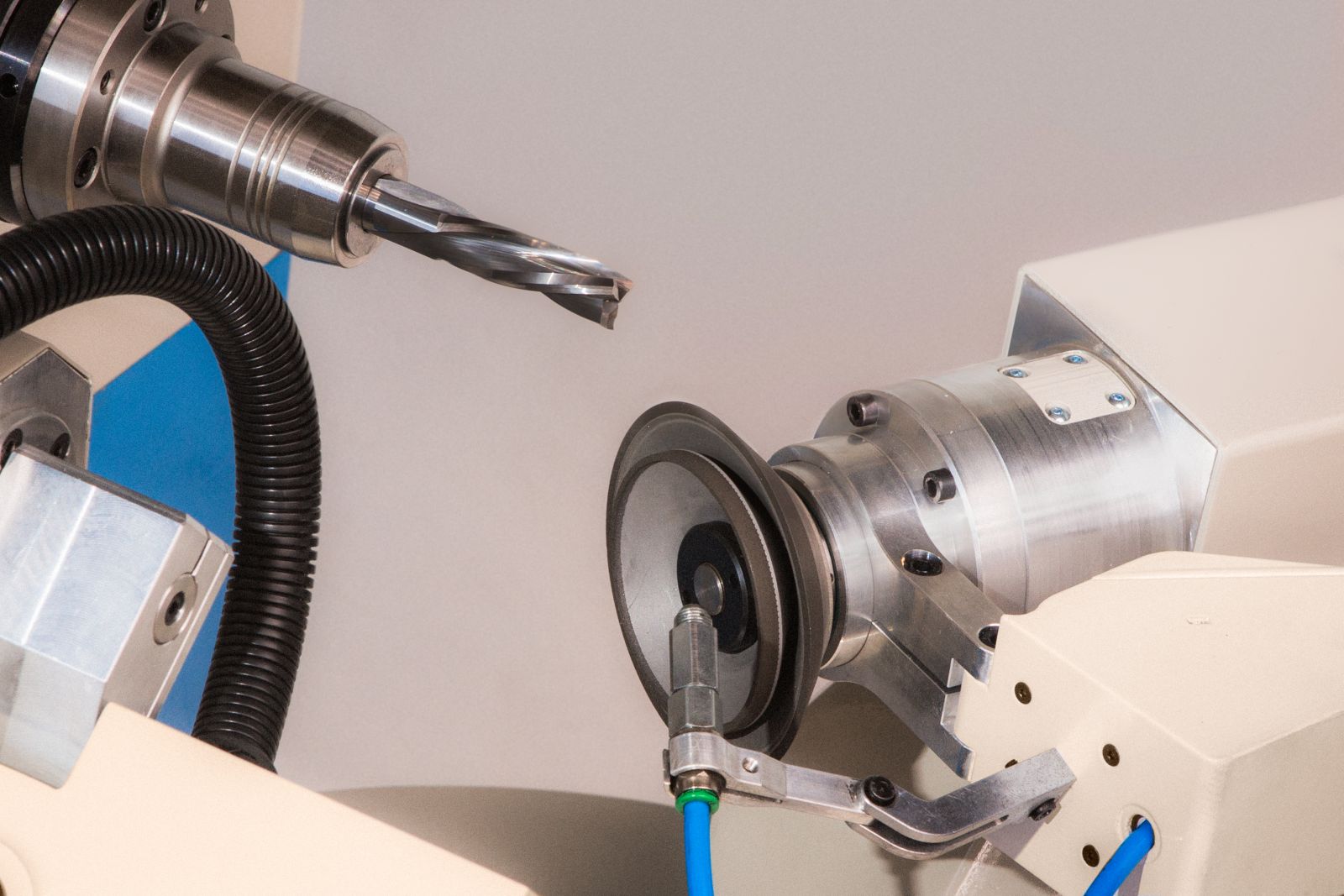

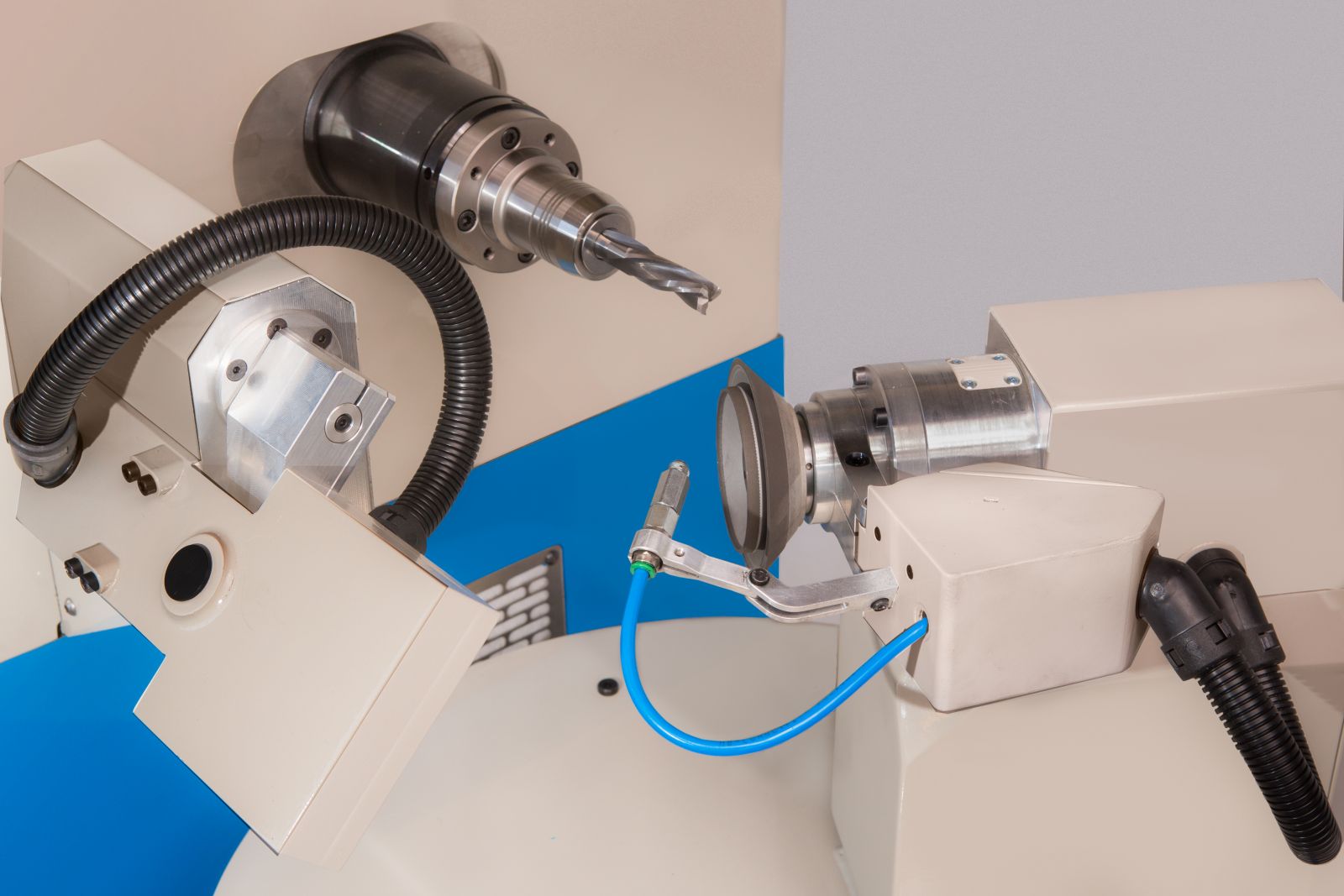

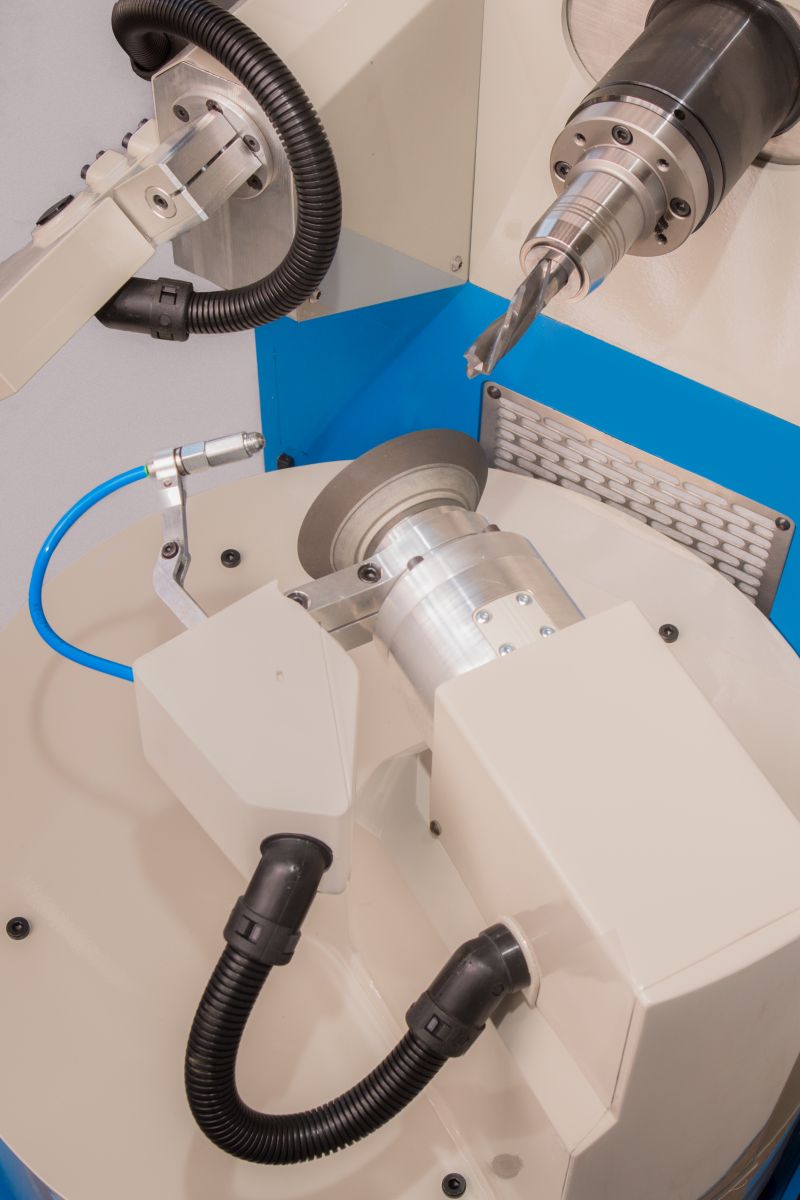

  • Two wheels mounted together, one 75mm(3") D6A9 wheel for OD grinding and one 100mm(4") D12V9 wheel for Fluting & End grinding
  • Automatic wheel measurement program activated every time the machine is switched on

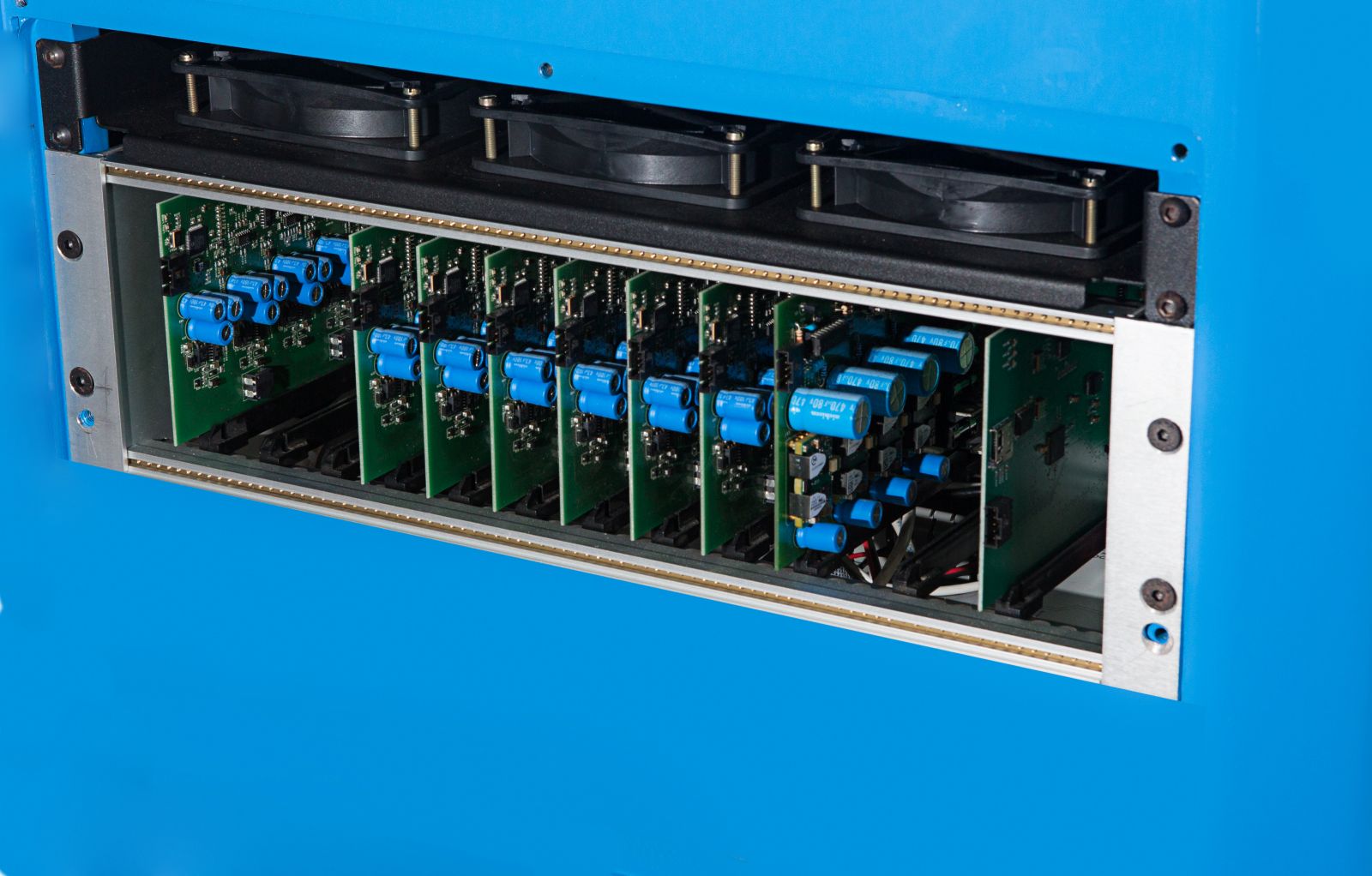

  • The NU5A Compact Scan does not require a specialist to operate, very little time is needed for training on how to use the machine and the mechanical and electronic systems are easily accessible
  • What makes the NU5A Compact Scan so revolutionary is the software which, through automatic laser analysis, allows the machine to determine all the tool parameters and automatically set-up and grind the tool with angular precision better than 0,03°
  • Due to the simplicity and ease of use, one operator can operate multiple machines at the same time and take up very little space

Advantages:

  • Productivity: You do not have to sharpen a spiral tool on a machine designed to manufacture the tool
  • No Errors: Due to exact laser analysis of the spiral tools parameter
  • Cost savings: No operator training costs due to the simplicity of the machine
  • Safety: Due to the totally enclosed working area

Technical Specifications:

Capacity:

Spirals from 3 mm to 25,4 mm (1/8” to 1”) up to 125 mm (5”) length

CNC Axis:

X - Cutter translation, resolution: .001mm , Maximum speed: 3m/min

Y - Cutter translation, resolution: .001mm, Maximum speed: 3m/min

Z - Grinding wheel height, resolution: .001mm, Maximum speed: 3m/min

A - Cutter rotation, resolution: .00007°

C - Grinding wheel angle rotation, resolution: .001°

B1 - Laser positioning, resolution: .0007°

Power requirement:

120-220 VAC, 10 Amp

Analysis system:

Class II laser sensor

Angular precision better than 0.03°

Radial precision: 0.6μm

Operator panel :

10” Touch screen,  Resolution 1024 x 600

Processor:

MIPS32®M4K® Core RAM: 128kb frequency: 80 MHz

Grinding wheel motor:

48V brushless DC motor

Wheel RPM: Adjustable from 2,000 to 5,700 rpm

Nominal power: 630 w

2 wheels mounted together (75mm & 100mm diamters)

Grinding amount:

Up to .005mm(.002") per pass and mutliple pass grinding program included

Functions:

Automatic analysis of cutter geometry

Helix angle, Cutting edge angle, Rake angle & Head angle

Wheel measurement and wheel compensation

Option for compression bits (up - down cut)

Interface:

On-line help via  Ethernet TCP/IP RJ-45 connection; Wi-Fi optional

Cooling System:

Oil coolant

Tank Capacity: 2 liter

Flow: 0.5—3ml per minute

Extraction:

Centrifugal extractor with filter, 300 m3/h

Dimensions:

1,166mm x 600mm x 950mm ,  Weight 400 kg

















































































STARK EMC-620 4A CNC HSS Saw Grinder









equipment,ltd. is pleased to introduce our

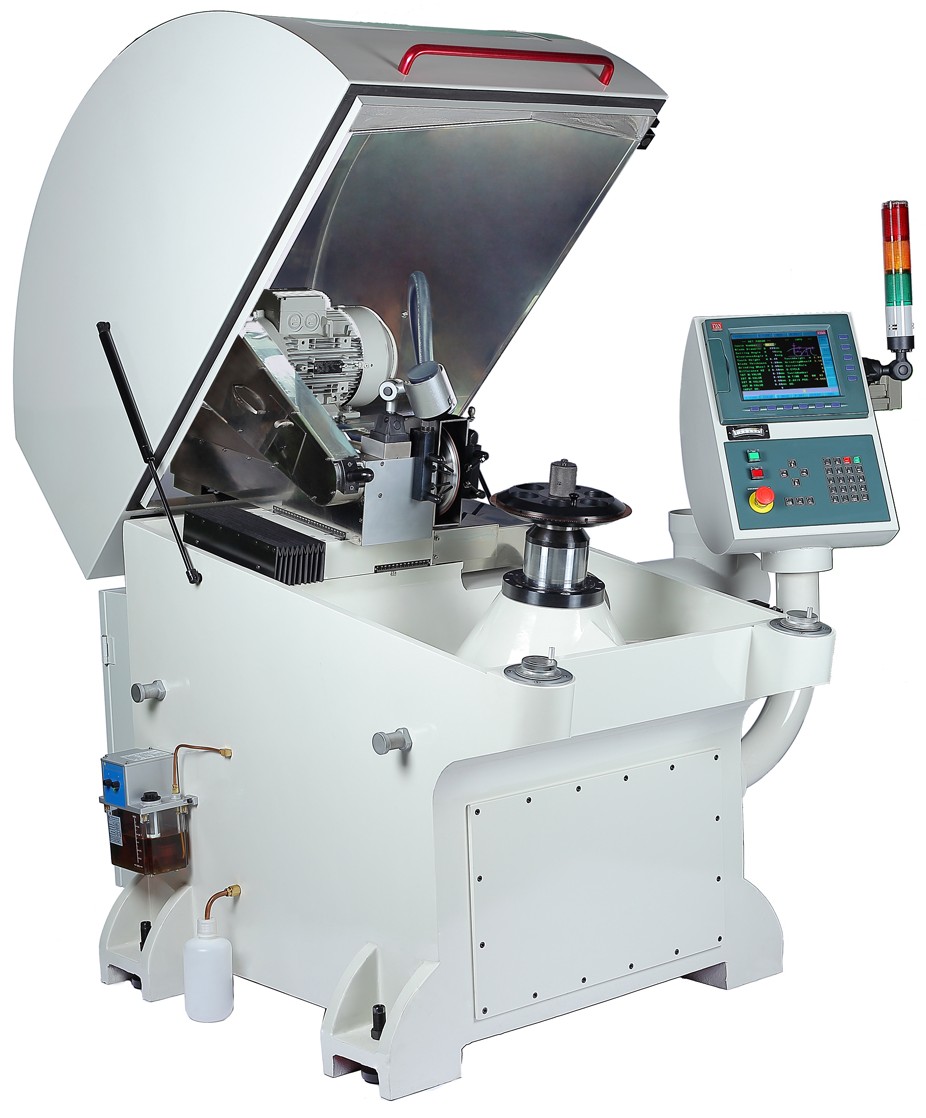

STARK EMC-620 4A CNC HSS Saw Grinder:

Features:



  • For servicing and manufacturing HSS saws up to 620 mm (24")
  • Capable of grinding triple chip saws in a single setup
  • Unique design where the saw blade moves up and down to grind the chamfers.
  • Automatic cutting angle calculation program
  • 200 mm (8") B14F1 CBN wheel for excellent removal rates
  • Vibration free grinding due to the absorbing properties of the FCD-45 spheriod ductile iron base
  • Large file storage system capable of storing 10,000 saw configuration programs in memory
  • Heat exchange unit on electrical control cabinet
  • High pressure coolant system with magnetic separator allowing for excellent stock removal
  • FilterMist Mist Collector
  • Automatic Central Lubrication System

Advantages:

  • Quick set up time due to the ability to store saw blade parameters in memory
  • Very fast setup due to the machine having 2 rotary hand wheel encoders (X axis & Y axis)
  • Simple operator input allows for all saw data to be inputted in a mater of minutes
  • Safety: Due to the totally enclosed working area

Technical Specifications:

Capacity:

For HSS saws from 65 mm to 620 mm (2.5" to 24") diameter  (35 mm - 1.375" diameter optional)

CNC Axis:

X - Grinding wheel left to right travel

Y - Grinding wheel infeed

Z - Saw blade vertical movement

B - Saw balde rotation

Power requirement:

220 VAC, 3 Phase, 60 Cycle, 30 Amps

Automatic Chamfering:

from 190 mm to 620mm (7.5" to 24")

Operator panel :

10” TFT-LCD monitor,  Resolution 1024 x 768

Number of Teeth:

from 10 to 998

Grinding wheel motor:

4Kw (5.25 HP)

Wheel RPM: Adjustable from 2,000 to 6,000 rpm

Grinding Wheel:

B14F1 CBN 200mm diameter x 32mm bore

Saw Blade Thickness:

Up to 8mm (5/16")

Cutting Angle:

From 0° to 30°

Grinding Speed

up to 60 Teeth per minute

Cooling System:

1.5Kw (2.0HP) High Pressure Coolant pump with 25w magnetis separator

Extraction:

Integrated FilterMist Mist extraction unit

Dimensions:

1900mm x 1910mm x 2060mm ,  Gross Weight 1,770Kg,  Net Weight 1,290Kg
